Connector Page

Updated 6/19/2014

Smaller Amounts Of Pins & Sockets Can Be Found On the Dollar Store.

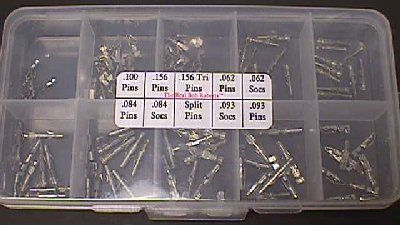

Also Available Pins & Sockets Kit For $13.
10 Pieces Of Each - 100pc Kit

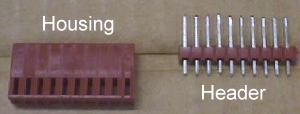

Molex in-line .100 center
Bally / Midway brown small pin style.

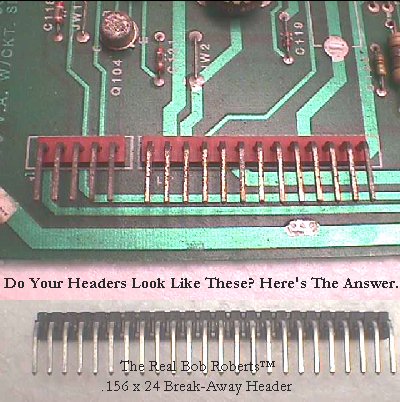

How To Determine .100 or .156 Header/Connector The Easy Way
.100 Right Angle header 10 pos break-away
Add or Subtract to meet your needs
$1.00
.100 Right Angle header 40 pos break-away
Add or Subtract to meet your needs
$2.50
.100 Straight header 11 position$1.00
.100 Straight header 15 position$1.25
.100 Straight non-Molex header 36 position$1.50

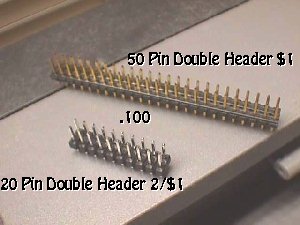

.100 x 20 Straight Double Header 2/$1.00
.100 x 50 Straight Double Header $1.00
.100 Housings with pins 10 pos(Jamma plus/pinball) $1.50
.100 Housings with pins 12 pos(Jamma plus/pinball) $2.00
.100 Housings with pins 15 pos(Jamma plus/pinball) $2.50
.100 Housings with pins 16 pos(Jamma plus/pinball) $2.75
.100 Housings with pins 24 pos(Jamma plus/pinball/Tron) $3.25
.100 Housings with pins 25 pos(Pinball/interconnects) $3.50
.100 Housings with pins 28 pos(Pinball) $4.50
.100 Spare pins / bag of 100$7.00
.100 Spare pins in bulk prepack of 500$30.00
.100 Polarizing keys 10/$1.50 Bag of 100$11.00
Molex in-line .156 center
Used by all mfrs at one time or another.

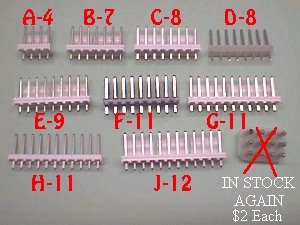

.156 Straight headers various pos & type to select from$0.75

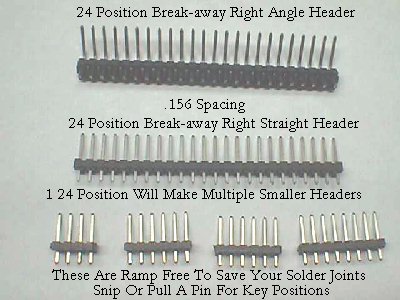

.156 Straight headers 24 position$2.00
.156 Right Angle headers 24 position$2.50
.156 Housing with pins 2 pos $0.15
.156 Housing with pins 3 pos(Monitor video)$0.25
.156 Monitor Set - 1 3 pos & 1 6 pos w pins $0.75
.156 Housing with pins 4 pos(WMs boards)$0.40
.156 Housing with pins 6 pos(Monitor video)$0.50
.156 Housing with pins 7 pos(WMs Boards)$0.65
.156 Housing with pins 8 pos(WMs Boards)$0.70
.156 Housing with pins 9 pos $0.75
.156 Housing with pins 10 pos(Monitor video)$0.80
.156 Housing with pins 10 pos (Trifurcon Pins)$1.20
.156 Housing with pins 11 pos $0.90
.156 Housing with pins 11 pos (Trifurcon Pins)$1.25
.156 Housing with pins 12 pos (Linear PS) $1.00
.156 Housing with pins 12 pos (Trifurcon Pins) $1.30
.156 Housing with pins 15 pos (Linear PS)$1.25
.156 Housing with pins 15 pos (Trifurcon Pins)$1.50
.156 Housing with pins 15 pos (AMP Heavy Duty)$2.50
.156 Housing with pins 18 pos(Linear PS)$1.75
.156 Housing with pins 18 pos(Trifurcon Pins)$2.30
.156 Housing with pins 19 pos(Linear PS)$1.85
.156 Housing with pins 19 pos(Trifurcon Pins)$2.40
.156 Housing with pins 20 pos(Linear PS)$1.95
.156 Housing with pins 20 pos(Trifurcon Pins)$2.50
.156 Housing with pins 24 pos (Linear PS)$2.25
.156 Housing with pins 24 pos(Trifurcon Pins)$3.00
.156 Obsolete Housings $0.50ea
.156 pins / bag of 100$7.00
.156 pins in bulk prepack of 500$30.00

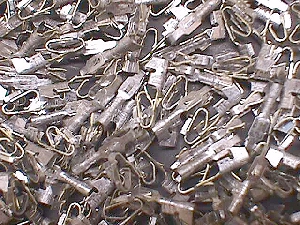

.156 Trifurcon pins bag of 50$4.50
.156 Trifurcon pins bag of 100 $8.50
.156 Trifurcon pins in bulk prepack of 500$37.50
.156 Polarizing keys 10/$1.50 Bag of 100$11.00
.156 Pin Extractor $10.00

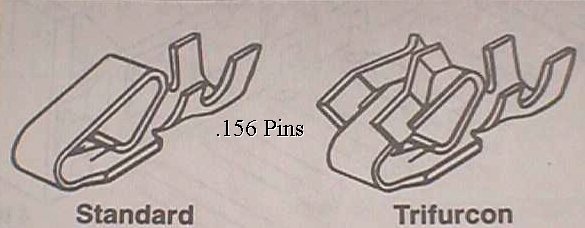

.156 Standard & Trifurcon Comparison
Molex rectangular .062 D connectors

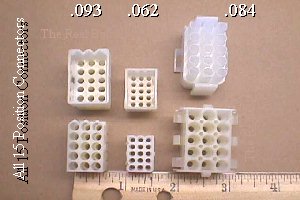

Size Comparisons
.062 Plug & receptacle 9 position with pins & sockets$2.00
.062 Plug & receptacle 12 position with pins & sockets$2.75
.062 Plug & receptacle 15 position with pins & sockets$3.50
.062 Spare pins only bag of 100$7.00
.062 Spare sockets only bag of 100$7.00
.062 Spare pins & sockets mix & match bag of 100$8.00

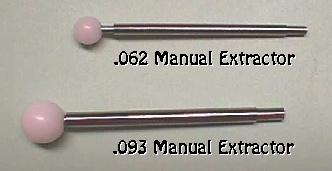

Molex manual pin/socket extractor .062 - Occasional Use$10.00
Molex spring loaded pin/socket extractor .062 - Industrial $20.00

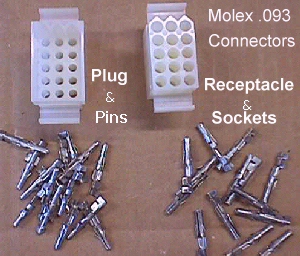

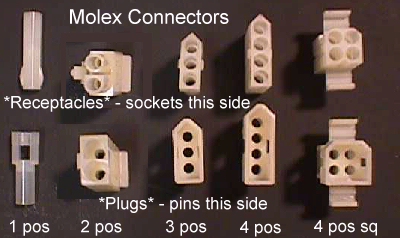

Molex rectangular .093 connectors
.093 Plug & receptacle 1 position w pin & socket$0.50
.093 Plug & receptacle 2 pos w pins & sockets (Monitor AC)$1.00
.093 Plug & receptacle 3 position w pins & sockets$1.25
.093 Plug & receptacle 3 position w pins/socs (Monitor AC)$1.50
.093 Plug & receptacle 4 position w pins & sockets$1.50
.093 Plug & receptacle 4 position Sq w pins & sockets$1.60
.093 Plug & receptacle 6 position w pins & sockets$2.00
.093 Plug & receptacle 9 position w pins & sockets$3.00
.093 Plug & receptacle 12 position w pins & sockets$4.00
.093 Plug & receptacle 15 position w pins & sockets$5.00
.093 6 Pos PCB Header (Pinball Bds)$2.00
.093 12 Pos PCB Header (Pinball Bds)$3.00
.093 pins only bag of 100$9.00
.093 sockets only bag of 100$9.00
.093 pins & sockets mix & match bag of 100$10.00
.093 Bag of 100 .093 Pins 18/14 Ga for larger wires $10.00
.093 Bag of 100 .093 Socs 18/14 Ga for larger wires $10.00
Molex manual pin/socket extractors .093 - Occasional Use $10.00
Molex spring loaded pin/socket extractors .093 - Industrial$20.00
All-in-one HT-1921 crimpers$16.00

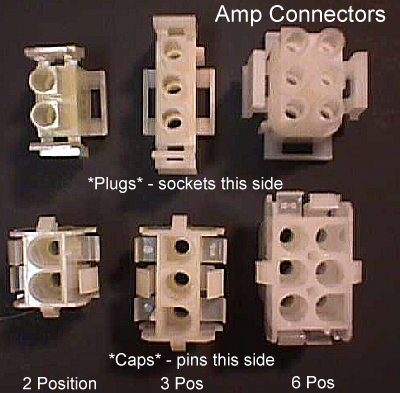

Amp Connectors
International Buyers: I am aware of your plight, but these are not
the Molex 3191 series even though they look somewhat similar.
These are equivalent to Molex 50-84-1xx0 & 2xx0.
.084 Plug & receptacle 2 position w pins & sockets$0.75
.084 Plug & receptacle 3 position w pins & sockets$1.00
.084 Plug & receptacle 4 position w pins & sockets$1.25
.084 Plug & receptacle 6 position w pins & sockets$1.75
.084 Plug & receptacle 9 position w pins & sockets$2.25

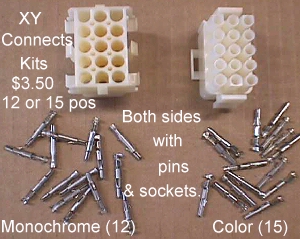

.084 Plug & receptacle 12 position w pins & sockets xy mono$3.50
.084 Plug & receptacle 15 position w pins & sockets xy color$3.50

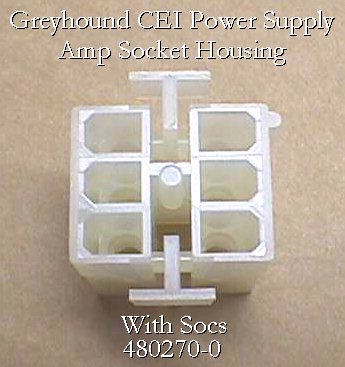

Amp 6 Pos Socket Housing w Socs$1.00

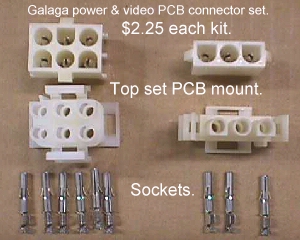

Galaga PCB power & video connector kit$2.25
Taito Power Connector $1.00

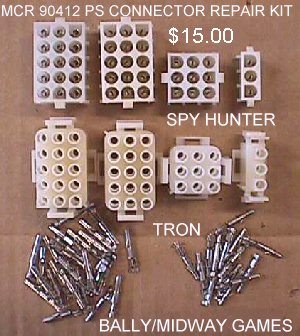

MCR 90412 PS connector kit$15.00
Amp MnL pins only bag of 100$8.00
Amp MnL sockets only bag of 100$8.00
Amp MnL pins & sockets mix & match bag of 100$9.00
Amp Manual Extraction Tool $20.00
Amp Spring Loaded Extraction Tool Best By Far! $50.00
Amp 10 Pos Plug & Socs $3.00

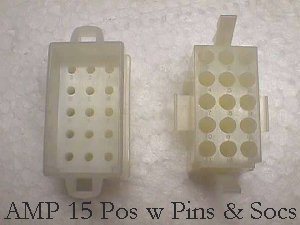

Amp 15 Pos Plug/Cap & Pins/Socs $7.00

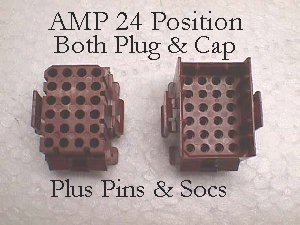

Amp 24 Pos Plug/Cap & Pins/Socs $15.00
Amp 24 Above Bag of 50 Spare Pins & 50 Spare Socs $20.00
Amp Solder Tail Headers

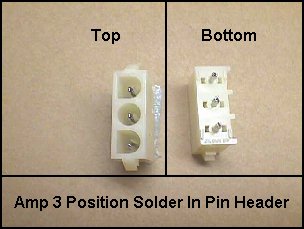

.084 3 Pos Pin Header$1.00

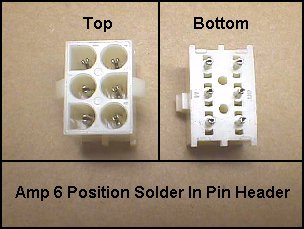

.084 6 Pos Pin Header$1.25

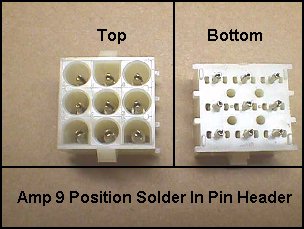

.084 9 Pos Pin Header$1.50

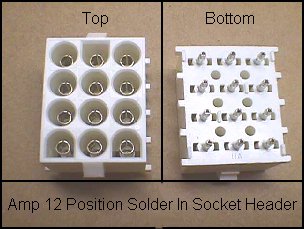

.084 12 Pos Socket Header$2.00

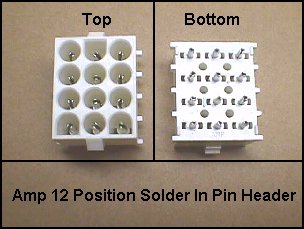

.084 12 Pos Pin Header$2.00

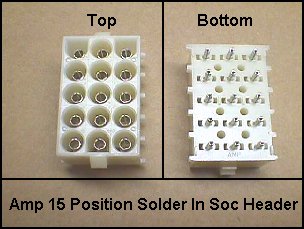

.084 15 Pos Socket Header$2.25

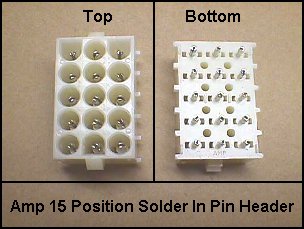

.084 15 Pos Pin Header$2.25
Quick Disconnect Terminals...for use with control panel switches

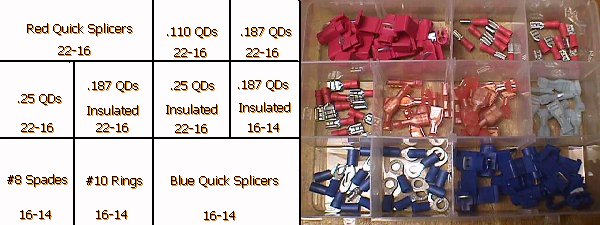

QD Kit - 100pcs$12.00
Bag Of 100 #8 Red Rings$6.00
Bag Of 100 #10 Blue Rings$6.00
Bag Of 50 .110 Quick Disconnects$4.00
Bag of 100 Red Partially Insulated .187 QDs$6.00
Bag of 100 Red Partially Insulated .25(Coin switch)$6.00
Bag of 50 Red Fully Insulated .187 QDs (CP micros)$6.00
Bag of 100 Red Fully Insulated .187 QDs (CP micros)$11.00
Builder Pack Of 500 Fully Insulated .187 QDs (CP micros)$47.00
Bag of 50 Red Fully Insulated .25 QDs (Coin switch)$7.00
Bag Of 100 Blue Partially Insulated .187 QDs$6.00
Bag Of 50 Blue Partially Insulated .25 QDs$4.00
Bag Of 100 Blue Partially Insulated .25 QDs$6.00
Bag of 50 Blue Fully Insulated .187 QDs (CP micros)$7.00
Bag of 25 Blue Fully Insulated .25 QDs (Coin switch)$5.00
Bag of 50 Blue Fully Insulated .25 QDs$8.00
Spade connectors...to switcher PS terminals...bag of 50$6.00

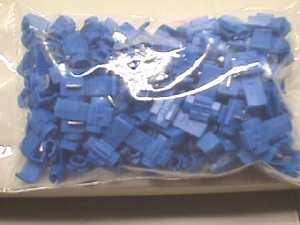

In-line splice connectors bag of 50 red 22-18 $7 bag of 100$10.00
In-line splice connectors bag of 100 blue 18-14 blue$10.00
Clear crimp-on wire nut splicers bag of 50$5.00
Cable Clamps & Ties - Bought Bulk Quantities To Cut Your Costs

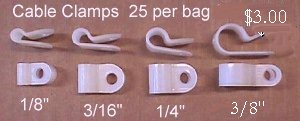

Cable Clamps Bag of 25 1/8" $3.50
Cable Clamps Bag of 25 3/16" $3.50
Cable Clamps Bag of 25 1/4" $3.50
Cable Clamps Bag of 25 3/8" $4.00
Cable Clamp Assortment Bag of 25 Each Size (100 Total) $10.00
Cable Clamps Bag of 100 1/8" $6.50
Cable Clamps Bag of 100 3/16" $6.50
Cable Clamps Bag of 100 1/4" $6.50
Cable Clamps Bag of 100 3/8" $7.00
Cable Clamp Assortment Bag of 100 Each Size (400 Total) $20.00
Black Cable Clamps Bag of 100 1/8"$6.50
Black Cable Clamps Bag of 100 3/16" $6.50
Black Cable Clamps Bag of 100 1/4" $6.50
Black Cable Clamps Bag of 100 3/8" $7.00
Black Cable Clamps Bag of 100 1/2"$8.00
Larger Cable Clamp Sizes
Cable Clamps Bag of 100 7/16"$7.00
Cable Clamps Bag of 100 1/2"$8.00
Cable Clamps Bag of 100 5/8"$8.50
Cable Clamps Bag of 100 3/4"$9.50
Cable Clamp Pan head screws ½" (50) Black$2.50
Cable Clamp Pan head screws ½" (50) Shiny $2.50

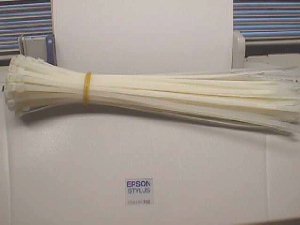

4" Cable Ties Bag of 100 Natural $2.50
4" Cable Ties Bag of 100 Black $3.50
8" Cable Ties Bag of 100 Natural $4.00
11.5" Cable Ties Bag of 100 Natural$5.00
4" Cable Ties Bag of 1000 Natural $12.00
4" Cable Ties Bag of 1000 Natural + Tie Tool $16.00
4" Cable Ties Bag of 1000 Black $13.00

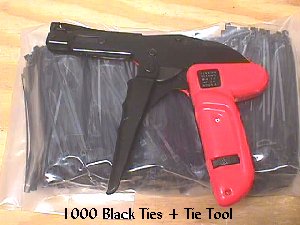

4" Cable Ties Bag of 1000 Black + Tie Tool $17.00

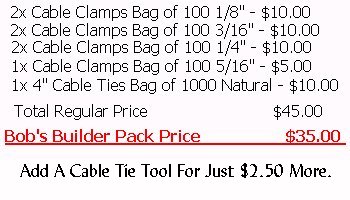

Cable Clamp & Tie Builder Pack $35.00
Cable Tie Tool$10.00

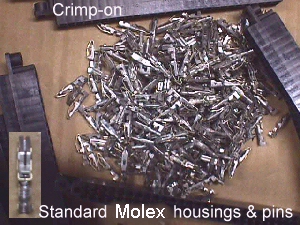

Molex edge connector housings with full compliment of split pins.

This obsolete line has pretty much dried up & what is left is priced
in gold bars. We bought a pallet full of pins & all we could find of
the housings to stretch them as much as possible, but they lasted less
than one year & we are constantly looking for any pockets of either
that may be hiding on backroom shelves. I wanted to forewarn y'all
that as our stock runs out there will be a dramatic increase in pricing,
if we can locate any, at all. There will be quite a trickle down effect on
many of our parts & kits that use these connectors & pins, as well.

10/20 Common on Atari games$7.00
12/24 Common on Atari games$8.25
15/30 Common on Atari games$10.00
18/36 Common on Konami games$12.75
22/44 Common on Bally/Midway games$15.25
24/48 Common on Gottlieb gamesNLA
25/50 Common on Gottlieb games$18.00
28/56 Jamma$19.25
28/56 Jamma Labeled & Keyed $22.75
Molex split pins bag of 25$10.00
Molex split pins bag of 50$18.00
Molex split pins bag of 100$30.00
Molex split pin extractor$10.00

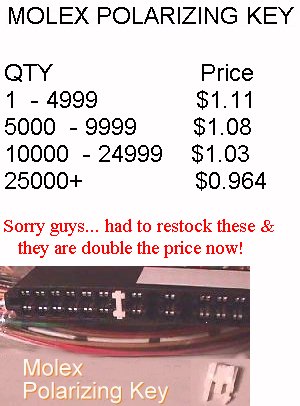

Molex JAMMA Polarizing Key $2.00

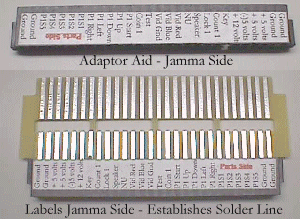

Molex Adaptor Aid $10.00
Solder Eyelet Edge Connectors
10/20 SE EC$5.00
12/24 SE EC$5.00
15/30 SE EC$5.00
18/36 SE EC$5.00

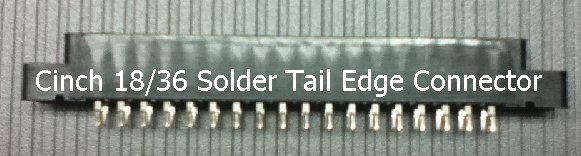

18/36 ST EC$4.00

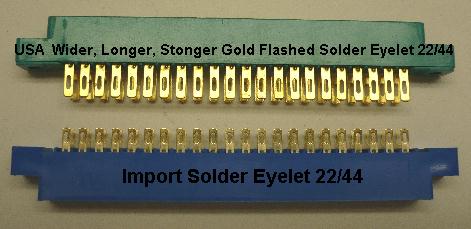

22/44 SE EC USA $6.00
28/56 SE EC Jamma$6.00
36/72 SE EC 8-Liner$6.00

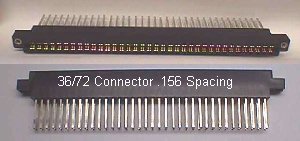

36/72 ST EC Special$6.00
Fingerboards

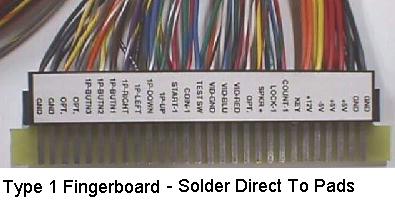

28/56 Jamma Fingerboards Type 1 $3.00

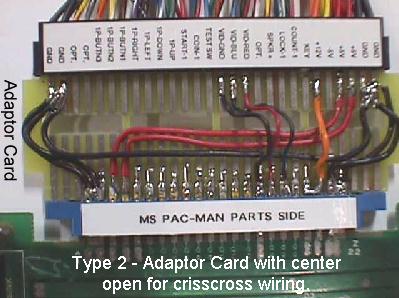

28/56 Jamma Fingerboards Type 2 $4.00
28/56 Jamma Fingerboards Type 3 $3.50
Fingerboard Precuts State Size Needed 10/20 12/24 22/44 $4.00
Adaptor Starter Kit Wire, Pre-soldered EC & Fingerboard
Your Choice Of 18/36, 22/44 or 28/56 SE EC
$10.00
PCB Edge Repair Kit 22/44$8.00

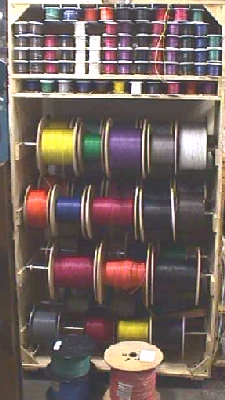

Stranded Hook-up Wire
100 ft hanks from 10K spools.
Please select desired color/s from list of availables.
Use 18GA for Power & 20GA for I/O - CP, Coin Door & Etc.

4/2010 - We've Sold Wire At A Loss For Nearly A Year Now
Unfortunately, With The Wire Increases This Week We Need
To Bring Our Prices Up Closer To A Break Even Point.

100'-18GA red/orange/black/brown/blue/green$12.00
100'-20GA red/grn/blu/wht/blk/brn/gry/vio/yel/orn$10.00
Stranded hook-up wire 25 ft hanks from 10K spools.
Specify Desired Color.
25'-18GA red/orange/black/brown/blue/green $4.25
25'-20GA red/grn/blu/wht/blk/brn/gry/vio/yel/orn$3.75
25'-22GA red/gry/yel$3.25
Convenient Multicolor Wire Packs
Bag of 20GA 10' x 10 colors (100' total)$12.00
Bag of 20GA 10' x 10 striped colors (100' total)$17.00
Bag of 18GA 10' x 6 colors (60' total)$12.00
Bag of scrap wires for adaptors$3.00

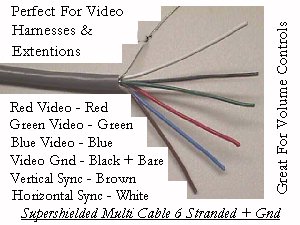

Super Shielded Multi-Conductor Cable Per/Ft $1.00
1/8" Black Heat Shrink Tubing Per/Ft $0.50
3/16" Black Heat Shrink Tubing Per/Ft $0.60
1/4" Black Heat Shrink Tubing Per/Ft $0.70
3/8" Black Heat Shrink Tubing Per/Ft $0.80
